❏Brief Introduction:

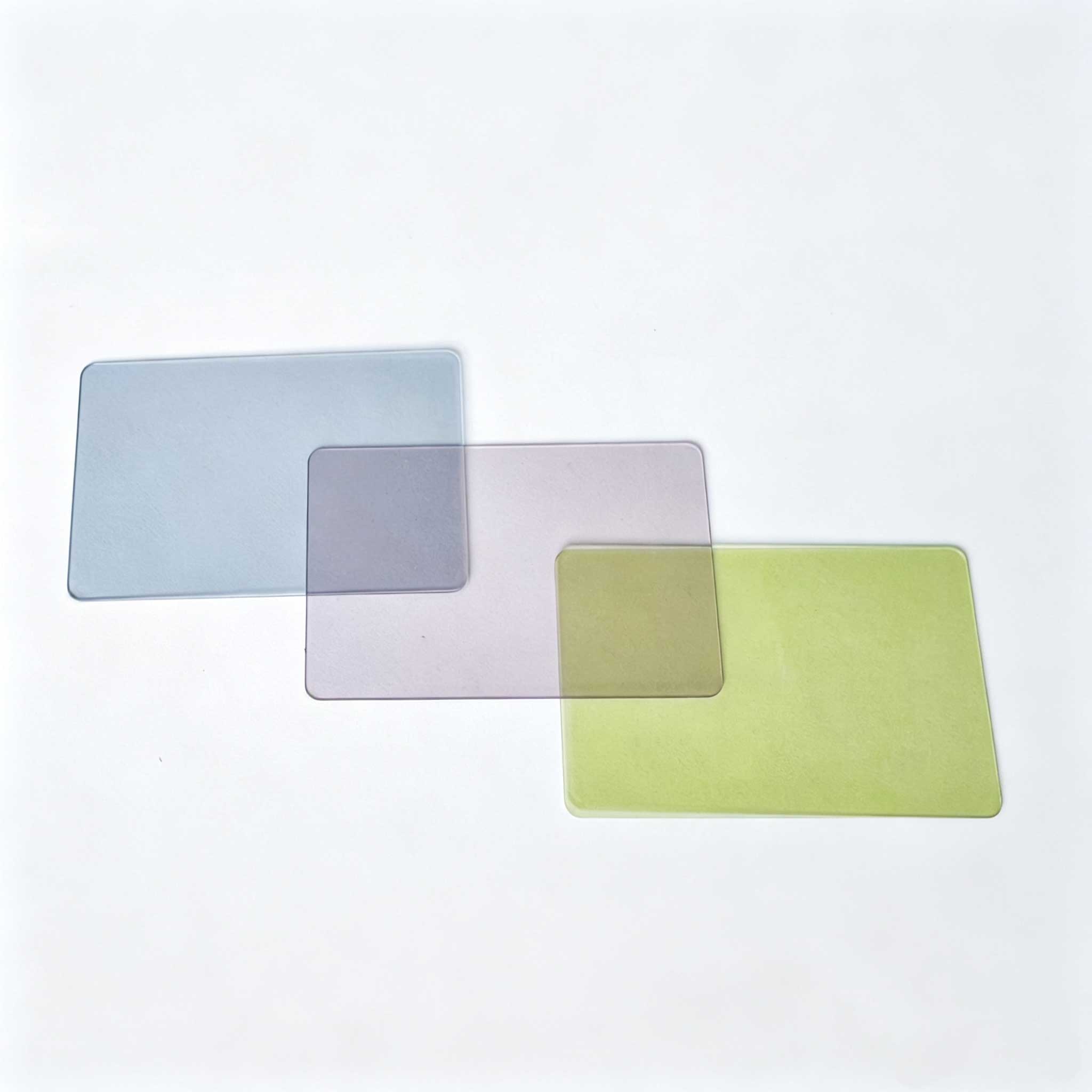

PVC IR Blocker Film is a functional film launched by Tianjin Houlang Technology for manufacturing transparent PVC cards. It features infrared-blocking properties and can be directly laminated with transparent PVC sheets during the card-manufacturing process, thereby simplifying the production workflow. IR Blocker PVC sheet offers strong adhesion, excellent dimensional stability, and outstanding aging resistance.
❏Characteristics：
Ø Suitable for the production of various transparent cards.
Ø Light color after lamination with high light transmittance.
Ø Good adhesion and high bonding strength.
Ø Long storage life with no loss of absorbance.
Ø High blocking value with no degradation.
Ø Environmentally friendly card manufacturing process with no solvents or exhaust emissions.
❏Technical Specifications：
Item | Parameters |
Color | Light pink |
Thickness | 0.08-0.12mm |
Peel Strength | ≥ 6 |
Transmittance (ISO7810) Icard / Iref | 860nm＜1 |
950nm＜1 | |
Heat Lamination Temperature | ＜140℃ |
Heat Lamination Time | ≤20min |
Cool Lamination Temperature | ≤25℃ |
Cool Lamination Time | ≥20min |
Pressure | 4-6MPa |
